RC-06 Column pull pressure sensor(Huge capacity)

Short Description:


Product Detail

Product Tags

Profile: Column pull pressure sensor is adopted a column structure, which has the characteristics of high accuracy, good strength, and good stability. Widely used in force measurement of industrial automation process control such as crane scales and hopper scales.

RC-06 Column pull pressure sensor(Huge capacity)2

Technical Parameter

Sensitivity

1.5±0.05mV/V

Nonlinear

±0.1≤%F.S

Hsteresis

±0.1≤%F.S

repeatability

0.05≤%F.S

Creep

±0.1≤%F.S/30min

Zero output

±1≤%F.S

Zero temperature coefficient

+0.1≤%F.S/10℃

Sensitivity temperature coefficient

+0.1≤%F.S/10℃

Operating temperature range

-20℃~ +80℃

Input resistance

400±20Ω

Output resistance

350±5Ω

Safe overload

150≤%RO

Insulation resistance

≥5000MΩ(50VDC)

Reference excitation voltage

5V-12V

Method of connecting wire

Red-INPUT(+) Black- INPUT(- )

Green-OUTPUT(+) White-OUTPUT( – )

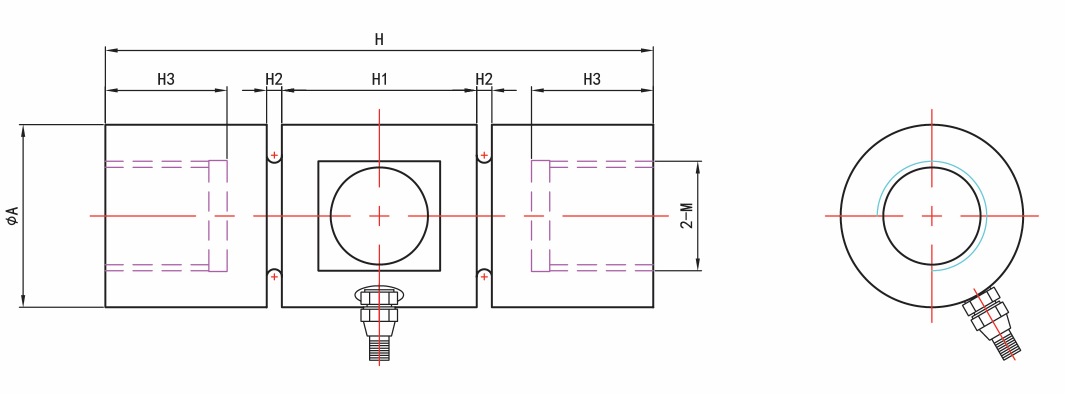

RC-06 Column pull pressure sensor(Huge capacity)1
